Deluxe burners offer more turns for greater heating surface. UL Listed, round, electric burners. 208/240 V. Economy 940/1250 W for No SP12YA Chromalox and 1575/2100 W for No SP21A Chromalox, Deluxe 1130/1500 W for No MP15YA Chromalox and 1575/2100 W for No MP21YA Chromalox.

20" ELECTRIC RANGE SS W/GLASS DO

This Avanti 20 in. Electric Range Comes with a Backsplash and Storage Drawer. It features 4 coil burners, 2.1 cu. ft. capacity, deluxe see-thru glass oven door, oven cavity light, a backsplash and leveling legs.

Fuel Type: Electric
Cooktop: Coil
Elements: 4
Primary Oven Capacity: 2.1 cu. ft.
Drawer: Storage
220-Volts
Leveling Legs: Yes
Elements: 4
Frequency: 60 Hz
Amps: 15-20
Style: freestanding
No digital clock

20" WHITE ELECTRIC RANGE 2.1CF

ELECTRIC RANGE 20" BLK/SS AVANTI

24" SS & BLACK ELECTRIC RANGE

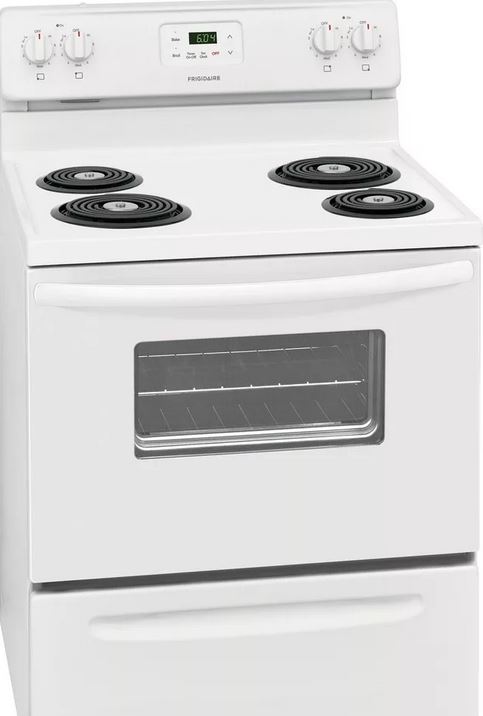

FRIGIDAIR 30" ELECTRIC RANGE WHT

FRIGIDAIRE ELECT RANGE BLKSS 30"

he Frigidaire 30'' Electric Range allows you to get meals on the table faster with this 3,000W element that boils faster than the traditional setting. SpaceWise expandable elements expand to meet your cooking needs - big or small. with the Store-More storage drawer, you will have extra space to store your cookware.

FRIGIDAIRE 30"ELECTRIC RANGE WHT

General Specifications

Adjustable Leveling Legs: 4 Adjustable
Product Weight (lbs): 175
Power Type: Electric
Size: 30''
Installation Type: Free-Standing
Collection: Frigidaire

Oven Specifications

Oven 1 Cleaning System: Self-Clean
Oven 1 Interior Lighting: 1 Incandescent

Exterior Specifications

Control Panel Finish: Stainless Steel
Door Finish: Glass with Stainless Steel
Handle Color: Stainless Steel

Capacities

Total Capacity: 5.4
Certifications & Approvals

ADA Compliant: No
Agency Approval: UL
Sabbath Mode: No

Cooktop

Center Rear: Warming Zone - 100 Watts
Cooking Surface: Upswept Black Smoothtop
Element On Indicator Light: 1 Clear
Hot-Surface Indicator Light: 1 Clear
Knob Color: Color-Coordinated
Knob Type: Plastic
Left Front: 6" to 9" - 1400/3000 Watts
Left Rear: 6" - 1200 Watts
Right Front: 9" to 12" - 1800/3000 Watts
Right Rear: 6" - 1200 Watts
Cooktop Surface Type: smooth surface

Exterior

Cooktop Finish: Color-Coordinated Porcelain
Exterior Finish: Painted

Cooking Controls

Bake: Yes
Broil: Broil Variable (400 - 500?F)
Cancel: Yes
Clock: Yes
Delay Clean: Yes
Automatic Oven (Delay Cook & Off): Yes
Lockout: Yes
Lower Drawer Controls: Storage
Self-Clean: 2 3 Hours (Scroll thru)
Probe: No
Timed Bake: Yes
Timed Shut-off: 12 hours
Timer: Yes
Control Lock: Yes

Dimensions: Exterior

Height: 47-3/4"
Width: 29-7/8"
Depth: 28-13/32"
Electrical Specifications

Amps @ 240 Volts: 11.5 / 8.5
Minimum Circuit Required (Amps): 40A
Power Supply Connection Location: Rear Centerline Lower
Voltage Rating: 120V / 240V or 120V / 208V 60Hz

Oven

Bake: 3500 Watts
Baking System: Even Baking Technology
Broil: 3600 Watts
Broil System: Vari-Broil(TM) High/Low
Hidden Bake Element: Yes
Oven 1 Interior Depth: 19-1/8"
Oven 1 Interior Height: 19-3/4"
Oven 1 Interior Width: 24-3/8"
Oven 1 Rack Configuration: 2 Standard
Oven 1 Rack Positions: 6 positions
Oven 1 Type: Main
Oven 1 Window: Extra-Large Visualite(R)

Drawer
Drawer Functionality: Storage
Handle: Integrated

Accessories

Griddle: Optional

Dimensions and Volume
Height: 36 5/8"
Width: 29 7/8"
Depth: 26 3/4"
Depth With Door 900 Open: 47"
Depth With Handle: 29 3/16"
Oven Interior Height: 18 5/8"
Oven Interior Width: 24 3/8"
Oven Interior Depth: 19 1/8"
Oven Capacity: 5 Cu. Ft.
Display
Control Location: Front
Display Type: Membrane

Cooktop Performance
Right Front Element Burner Size: 12"
Right Rear Element Burner Size: 6"
Left Front Element Burner Size (Small): 6"
Left Front Element Burner Size (Large): 9"
Left Rear Element Burner Size: 6"
Right Front Element Burner: 2,700 Watts
Right Rear Element Burner: 1,200 Watts
Left Front Element Burner (Small): 1,400 Watts
Left Front Element Burner (Large): 3,000 Watts
Left Rear Element Burner: 1,200 Watts
Keep Warm Burner Location: Center Rear

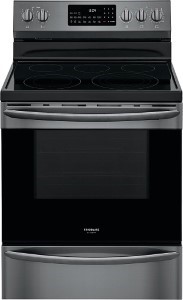

The Frigidaire Gallery 30 in. Electric Range with Quick Bake Convection allows you to bake faster and also get meals on the table faster with the powerful Quick Boil 3,000-Watt element. This range also features a convenient 30-minute Steam Clean, a 30-minute light oven cleaning that's chemical-free, odor-free, and fast.

5.4 cu. ft. large capacity oven gives you plenty of room to cook more at once
5-element electric range includes two 6 elements, a 6/12 in. expandable element and a Quick Boil element that adjusts to fit pots and pans for cooking flexibility; also includes a radiant warming zone
SpaceWise Expandable Elements expand to your cooking needs
Convection option ensures fast, even baking
Smudge-Proof Black Stainless Steel resists fingerprints and is easy to clean
High/low broil options between from 400?F to 500?F
Convenient drawer at the bottom of the range gives you extra storage space in your kitchen
Express-Select Control knobs makes it easy to set cooking temperatures
Extra-large oven window lets you easily see what's inside
One-Touch Self Clean - Your oven cleans itself - so you don't have to. Self clean options available in 2, 3 and 4-hour cycles.
Fast Steam Cleaning Option - A 30-minute light oven cleaning that's chemical-free, odor-free, and fast.
Color-coordinated backguard creates a streamlined look

Features

Make healthier and delicious meals with Air Fry

Deliver all of the flavor and none of the guilt. Air Fry allows you to make healthier and delicious meals for the entire family - right in your oven. The first range on the market to include Air Fry.
Faster, more even baking results with True Convection

Get faster, more even multi-rack baking with a powerful convection fan and third heating element that evenly circulates hot air throughout the oven.
SpaceWise(R) Triple Expandable element

Get three elements in one with our Triple Expandable element - a 6" inner ring for smaller pots and pans and a 9" and 12" outer ring to make room for larger cookware.

Quick Boil Element

Get meals on the table faster with our powerful 3,000W element.
Flexible Five Element Cooktop
Provides the ultimate cooking flexibility. This powerful electric cooktop that has five elements designed to handle all of your cooking
needs.
Fast Steam Cleaning Option

A 30-minute light oven cleaning that's chemical-free, odor-free, and fast.

Quick Preheat

Start baking in just a few minutes with Quick Preheat 1
One-Touch Self Clean

Your oven cleans itself - so you don't have to. Self clean options available in 2, 3 and 4-hour cycles.
Smudge-Proof(R) Black Stainless Steel

Practical has never looked so stylish with Smudge-Proof(R) Black Stainless Steel, a beautiful new finish with an easy-to-clean fingerprint resistant surface.

Optional ReadyCook(TM) Air Fry Tray

Allows you to achieve perfectly crispy and delicious Air Fry results, faster than nonstick bakeware. 2

Specifications

Dimensions and Volume
Height: 48"
Width: 30"
Depth: 25 3/4"
Depth With Door 90? Open: 49"
Depth With Handle: 29 1/4"
Oven Interior Height: 21"
Oven Interior Width: 24 3/8"
Oven Interior Depth: 19 1/8"
Oven Capacity: 5.7 Cu. Ft.
Display
Control Location: Rear
Display Interface Color: White
Display Type: Membrane

Cooktop Performance
Right Front Element Burner Size (Small): 6"
Right Front Element Burner Size (Medium): 9"
Right Front Element Burner Size (Large): 12"
Right Rear Element Burner Size: 6"
Left Front Element Burner Size (Small): 6"
Left Front Element Burner Size (Large): 9"
Left Rear Element Burner Size: 6"
Right Front Element Burner (Small): 1,200 Watts
Right Front Element Burner (Medium): 2,000 Watts
Right Front Element Burner (Large): 3,000 Watts
Right Rear Element Burner: 1,200 Watts
Left Front Element Burner (Small): 1,400 Watts
Left Front Element Burner (Large): 3,000 Watts
Left Rear Element Burner: 1,200 Watts
Keep Warm Burner Location: Center Rear
Controls
Control Lock: Yes
Sabbath Mode: Yes
Cooking Controls
Air Fry: Yes
Bake: Yes
Broil: Yes
Cancel: Yes
Convection Bake: Yes
Convection Convert: Yes
Convection Roast: Yes
Cooktop Lockout: Yes
Delay Clean: Yes
Door Lock: Yes
Keep Warm: Yes
Kitchen Timer: Yes
Lockout: Yes
Off: Yes
Oven Light: Yes
Preheat: Yes
Probe: Yes
Self Clean: Yes
Set Clock: Yes
Start: Yes
Steam Clean: Yes
Temperature Display: Yes
Electrical Specifications
Minimum Circuit Required: 40 Amps
Voltage Rating: 240 V
Oven
Bake Element: 3,500 Watts
Bake System: Yes
Broil Element: 3,900 Watts
Broil System: Yes
Convection Element: 900 Watts
Number of Rack Positions: 7
Rack Position Type: Nickel Ladder
Rack Type 1 Quantity: 2
Rack Type 2 Quantity: 1
Window Type: Extra Large Visual
Installation
Adjustable Leveling Legs: Yes
Power Cord Included: No
Cooktop
Cooking Surface Type: Smooth
Element On Indicator Light: Yes
Hot-Surface Indicator Light: Yes
Keep Warm Zone Light: Yes
Exterior
Cooktop Finish: Color Coordinated
Exterior Finish: Smudge-Proof(R) Black Stainless Steel
Handle Material: Plastic
Knob Color: Color Coordinated
Safety Certifications and Approvals
CSA Listed: Yes
UL Listed: Yes
ETL Listed: No
Drawer
Drawer Handle Style: Integrated
Drawer Type: Storage

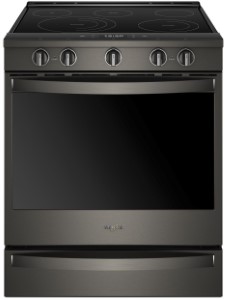

WP SMART ELECTRIC RANGE BLK/SS
